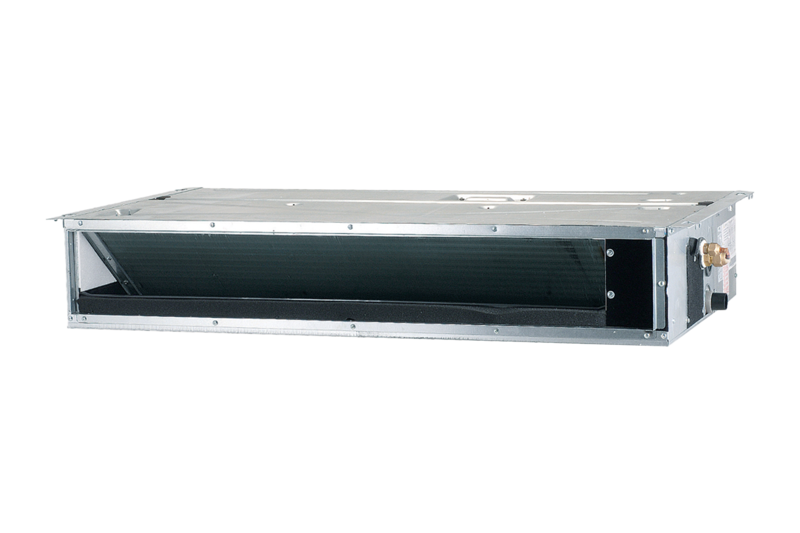

Duct installation unit LSP with condensate pump NASA 2.6 KW

Duct installation unit LSP with condensate pump NASA 2.6 KW

€557,76 EUR
€697,90 EUR €557,76 EUR
Sale Sold out

  • Indoor unit, plus remote control of your choice
  • Flat design
  • Cooling capacity: 2.6 kW
  • Heating output: 2.9 kW
  • Easy installation
  • Easy maintenance
  • Incl. condensate pump (built-in)
  • incl. pre-filter

  • Product description

    • ECO Norm | whisper quiet
    • Super-flat: only 199 mm high
    • External static pressure up to 30 Pa
    • Built-in condensate water pump with 55 cm discharge head
    • Optional: fault signal and ON | OFF contact
    • Optional: infrared remote control plus receiver
    • Optional: Wired remote control with real-time, daily and weekly timer and room temperature sensor
    • Cooling | Heating | Dehumidifying | Ventilating
    • 3 fan speeds
    • Auto restart
    • Antibacterial coated heat exchanger
    • Includes antibacterial coated air filter

    Indoor unit

    • Housing made of galvanized sheet steel
    • Lined inside and out with abrasion-resistant sound and heat insulation
    • Low-noise fan, statically and dynamically balanced
    • Motor with winding protection
    • Corrosion-protected condensate tray
    • Evaporator made of copper tube with pressed-on aluminum fins
    • Self-diagnosis system via microprocessor with LED display

    Dimensions Climate

    Designation Value
    Internal dimensions (W/H/D) mm 700x199x440
    Weight inside kg 15

    Climate performance data

    Designation Value
    Nominal cooling capacity kW 2.6
    Nominal heating output kW 2.9

    Sound data

    Designation Value
    Sound pressure indoor unit dB 33/29/23
    Sound power level indoor unit dB 50

    Electrical data

    Designation Value
    Nominal power consumption cooling kW 0.080
    Nominal power consumption heating kW 0.080
    Nominal current consumption cooling A 0.40
    Nominal current consumption heating A 0.40
    Power supply V 230
    Electrical connection Ph 1

    Connections, lines and refrigerants

    Designation Value
    Liquid line connection mm 6.35
    Suction gas line connection mm 9.52
    Refrigerant
    		 R32

    Fan data

    Designation Value
    Type
    		 Sirocco
    Performance kW 0.069
    Air volume m³/h 546
    max. ext. static pressure Pa 30

    Application limits

    Designation Value
    Cooling setting limits °C 18 to 30
    Heating setting limits °C 16 to 30
    • All SAMSUNG air conditioning systems are power-controlled and equipped with a restart after a power failure
    • Nominal cooling capacity at room temperature 27°C, outside temperature 35°C
    • Nominal heating output at room temperature 20°C, outside temperature 7°C
    • Sound data measured in an anechoic chamber at a distance of 1 m according to ISO 3741
    • Electrical supply for all devices possible via the outdoor unit
    • Fuse slow - according to local regulations

    Scope of delivery

    • Indoor unit
    • Incl. condensate pump (built-in)

    Required accessories

    • Remote control of your choice

    Procurement goods delivery time approx. 1 week
