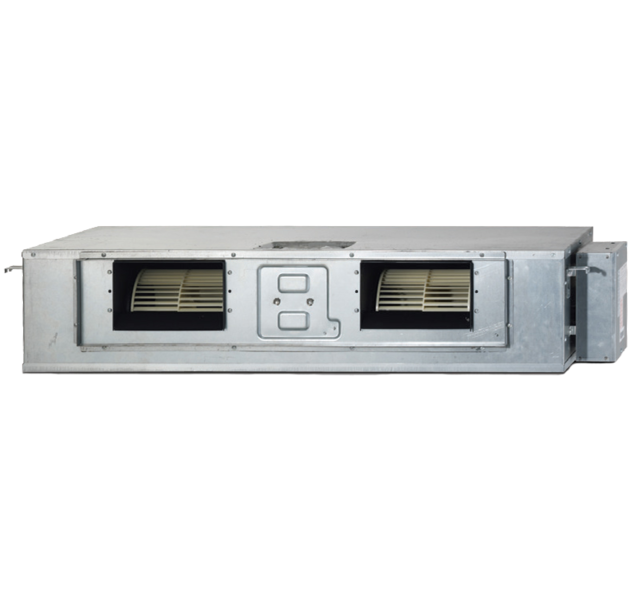

Duct installation unit MSP NASA 5.2 KW

Duct installation unit MSP NASA 5.2 KW

€728,43 EUR
€911,40 EUR €728,43 EUR
Sale Sold out

  • Indoor unit, plus remote control of your choice
  • Cooling capacity: 5.2 kW
  • Heating output: 5.6 kW
  • Narrow width
  • Large, area-wide blow-out
  • Quiet operation through static pressure regulation
  • Easy maintenance
  • incl. pre-filter

  • Product description

    • ECO Norm | whisper quiet
    • Super-flat: only 260 mm high
    • External static pressure up to 80 Pa
    • Optional: fault signal and ON | OFF contact
    • Optional: infrared remote control plus receiver
    • Cooling | Heating | Dehumidifying | Ventilating
    • Optional: Condensate water pump with 75 cm discharge head
    • 3 fan speeds
    • Automatic restart
    • Antibacterial coated heat exchanger
    • Includes antibacterial coated air filter

    Indoor unit

    • Housing made of galvanized sheet steel, lined inside and outside with abrasion-resistant sound and heat insulation
    • Low-noise radial fans, statically and dynamically balanced
    • Motor with winding protection
    • Corrosion-protected condensate tray
    • Evaporator made of copper tube with pressed-on aluminum fins
    • Self-diagnosis system via microprocessor with LED display
    • LCD cable remote control for surface mounting, user-friendly symbol technology

    Dimensions Climate

    Writer: Value
    Internal dimensions (W/H/D) mm 900x260x480
    Weight inside kg 28.3

    Climate performance data

    Writer: Value
    Nominal cooling capacity kW 5.2
    Nominal heating output kW 5.6

    Sound data

    Writer: Value
    Sound pressure indoor unit dB 42/39
    Sound power level indoor unit dB 59

    Electrical data

    Writer: Value
    Nominal power consumption cooling kW 0.17
    Nominal power consumption heating kW 0.17
    Nominal current consumption cooling A 1.04
    Nominal current consumption heating A 1.04
    Power supply V 230
    Electrical connection Ph 1

    Connections, lines and refrigerants

    Writer: Value
    Liquid line connection mm 6.35
    Suction gas line connection mm 12.70
    Refrigerant
    		R32

    Fan data

    Writer: Value
    type
    		sirocco
    Performance kW 0.2
    Air volume m³/h 978
    max. ext. static pressure Pa 60

    Application limits

    Writer: Value
    Cooling setting limits °C 18 to 30
    Heating setting limits °C 16 to 30
    • All SAMSUNG air conditioning systems are power-controlled and equipped with a restart after a power failure
    • Nominal cooling capacity at room temperature 27°C, outside temperature 35°C
    • Nominal heating output at room temperature 20°C, outside temperature 7°C
    • Sound data measured in an anechoic chamber at a distance of 1 m according to ISO 3741
    • Electrical supply for all devices possible via the outdoor unit
    • Fuse slow - according to local regulations

    Scope of delivery

    • Indoor unit

    Required accessories

    • Remote control of your choice

    Procurement goods delivery time approx. 1 week
