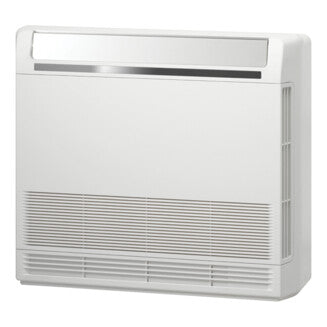

Chest unit NASA 3.5 KW
Chest unit NASA 3.5 KW
Regular price
€663,02 EUR
Regular price
€829,60 EUR
Sale price
€663,02 EUR
Unit price
/
per
Couldn't load pickup availability
- Indoor unit, including IR remote control
- Cooling capacity: 3.5 kW
- Heating output: 3.8 kW
- Plasma ionizer
- Flat and elegant
- 2 separate air outlets
- Quiet operation
- Attention! Cannot be connected to AJ068, AJ080, AJ100
Product description
- ECO Norm | whisper quiet
- S-plasma ionizer, ensures virus and bacteria free air (certified by TÜV Rheinland)
- Includes infrared remote control
- Optional: Wired remote control with real-time, daily and weekly timer and room temperature sensor
- Optional: fault signal and ON | OFF contact
- Cooling | Heating | Dehumidifying | Ventilating
- 3 fan speeds
- Air outlet top and bottom
- Automatic restart | Automatic air swing
- Filter system consisting of: Silver Nano coated metal filter | Deodorization filter | Catechin filter
- Silver nano-coated heat exchanger
- Device color RAL 9010 similar
Indoor unit
- Elegant housing
- Air outlet top and bottom
- Automatic air control for optimal supply air distribution in the room, multi-stage adjustable
- Cleanable air filter, easily removable
- Fan can be switched to multiple levels for particularly quiet operation
- Direct drive motor with winding protection
- Evaporator made of CU pipe with pressed-on aluminum fins
- Electronic control with microprocessor-controlled operating sequence for optimum climate comfort
- Including switching control via infrared remote control (distance up to 10 m) with easy-to-understand LCD display or optional cable remote control with real-time, daily and weekly timer and room temperature sensor
Hide all
| Writer: | Value | |
|---|---|---|
| Internal dimensions (W/H/D) | mm | 720x620x199 |
| Weight inside | kg | 15.7 |
| Writer: | Value | |
|---|---|---|
| Nominal cooling capacity | kW | 3.5 |
| Nominal heating output | kW | 3.8 |
| Writer: | Value | |
|---|---|---|
| Sound pressure indoor unit | dB | 38/35/24 |
| Sound power level indoor unit | dB | 57 |
| Writer: | Value | |
|---|---|---|
| Nominal power consumption cooling | kW | 0.035 |
| Nominal power consumption heating | kW | 0.035 |
| Nominal current consumption cooling | A | 0.29 |
| Nominal current consumption heating | A | 0.29 |
| Power supply | V | 230 |
| Electrical connection | Ph | 1 |
| Writer: | Value | |
|---|---|---|
| Liquid line connection | mm | 6.35 |
| Suction gas line connection | mm | 9.52 |
|
Refrigerant
|
R32 | |
| Writer: | Value | |
|---|---|---|
|
type
|
Turbo fan | |
| Performance | kW | 0.035 |
| Air volume | m³/h | 630 |
| Writer: | Value | |
|---|---|---|
| Cooling setting limits | °C | 18 to 30 |
| Heating setting limits | °C | 16 to 30 |
- All SAMSUNG air conditioning systems are power-controlled and equipped with a restart after a power failure
- Nominal cooling capacity at room temperature 27°C, outside temperature 35°C
- Nominal heating output at room temperature 20°C, outside temperature 7°C
- Sound data measured in an anechoic chamber at a distance of 1 m according to ISO 3741
- Electrical supply for all devices possible via the outdoor unit
- Fuse slow - according to local regulations
Scope of delivery
- Indoor unit
- IR remote control
Procurement goods delivery time approx. 1 week
